Hanbell eenheid voor gemiddelde tot hoge temperaturen
De Hanbell schroefunit voor middelhoge tot hoge temperaturen is een zeer efficiënte, geïntegreerde koeloplossing die speciaal is ontworpen voor toepassingen met middelmatige tot hoge verdampingstemperaturen. De unit legt de nadruk op systeemstabiliteit, operationele betrouwbaarheid en gebruiksgemak bij technische projecten. Het beschikt over een compacte, alles-in-één structuur die de schroefcompressor, olieafscheider, oliekoeler, vloeistofontvanger, economiser, drukregelaar en elektrische schakelkast in hoge mate integreert. Bovendien is hij uitgerust met een modulair frame, afsluiters, terugslagkleppen, veiligheidskleppen en een olie-injectiesysteem, waardoor een volledig functionele koelunit rechtstreeks uit de fabriek ontstaat. Dit geïntegreerde ontwerp vereenvoudigt de installatie en inbedrijfstelling ter plaatse, waardoor de projectefficiëntie wordt verbeterd.
De unit is uitgebreid geconfigureerd, waarbij alle belangrijke koelcomponenten en bedieningselementen afkomstig zijn van gerenommeerde merken om een gecoördineerde werking tussen de componenten te garanderen, waardoor de algehele systeembetrouwbaarheid en operationele veiligheid worden verbeterd. Het modulaire frameontwerp biedt flexibiliteit voor toekomstige uitbreiding of onderhoud, waardoor de algehele operationele en onderhoudscomplexiteit wordt verminderd en tegelijkertijd consistente prestaties worden gegarandeerd onder middelmatige tot hoge temperaturen.
Introductie apparatuurparameters

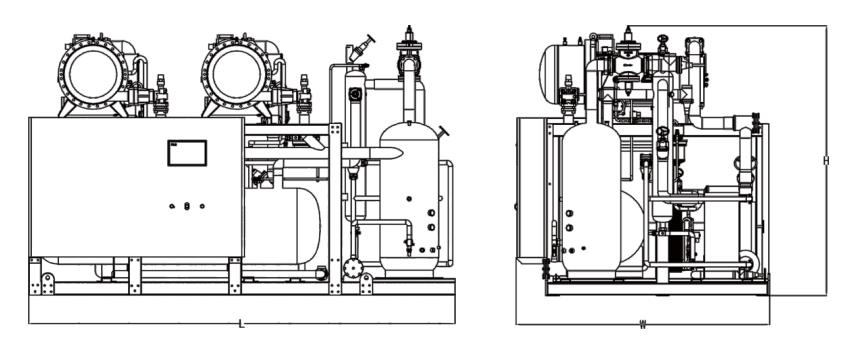

Detailweergave
Neem contact op
Introductie apparatuurparameters
| Eenheidsmodel | Com.Model | Kom, Kwaliteit | Condenserend temperatuur. (℃) | Verdampingstemperatuur. (℃) | Reservoir (L) | Levering pijp (mm) | Zuigkracht pijp (mm) | Gas Uitgang pijp (mm) | vloeistof inlaatpijp (mm) | Afmeting (mm) (LxB×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Koelcapaciteit/opgenomen vermogen (kw) | |||||||||||||||||||
| LXPL-BHF-30M | RC2-100B -Z (30PK) | 1 | 35 | 47. | 18.7 | 38.1 | 19.4 | 70.6 | 20.1 | 85.2 | 20.7 | 101.2 | 21.2 | 80 | Φ28 | Φ54 | Φ42 | Φ35 | 1700×900×1100 |
| 40 | 43.8 | 20.4 | 34.1 | 21.2 | 66.4 | 22.0 | 80.3 | 22.7 | 96.4 | 23.3 | |||||||||
| 45 | 40.3 | 22.2 | 50.0 | 23.1 | 61.6 | 24.0 | 74.8 | 24.8 | 90.4 | 25.3 | |||||||||
| LXPL-BHF2 -60M | RC2-100B -ZP (30PK) | 2 | 35 | 94.2 | 37.4 | 116.2 | 38.8 | 141.2 | 40.2 | 170.4 | 41.4 | 202.4 | 42.4 | 100 | Φ35 | Φ89 | Φ54 | Φ35 | 2300×1700×1800 |
| 40 | 87.6 | 40.8 | 108.2 | 42.4 | 132.8 | 44.0 | 160.6 | 45.4 | 192.8 | 46.6 | |||||||||
| 45 | 80.6 | 44.4 | 100.0 | 46.2 | 123.2 | 48.0 | 149.6 | 49.6 | 180.8 | 50.6 | |||||||||
| LXPL-BHF3 -90M | 3 | 35 | 141.3 | 56.1 | 174.3 | 58.2 | 211.8 | 60.3 | 255.6 | 62.1 | 306.3 | 63.6 | 150 | Φ42 | Φ89×2 | Φ54 | Φ42 | 3000×1700×1800 | |
| 40 | 131.4 | 61.2 | 162.3 | 63.6 | 1992 | 66.0 | 240.9 | 68.1 | 289.2 | 69.9 | |||||||||
| 45 | 120.9 | 66.6 | 150.0 | 69.3 | 184.8 | 72.0 | 224.4 | 74.4 | 271.2 | 75.9 | |||||||||
| LXPL-BHF4 -120M | 4 | 35 | 188.4 | 74.8 | 232.4 | 77.6 | 282.4 | 80.4 | 340.8 | 82.8 | 408.4 | 84.8 | 200 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 3700×1700×1800 | |
| 40 | 1752 | 81.6 | 216.4 | 84.8 | 265.6 | 88.0 | 321.2 | 90.8 | 385.6 | 93.2 | |||||||||
| 45 | 161.2 | 88.8 | 200.0 | 92.4 | 246.4 | 96.0 | 299.2 | 99.2 | 361.6 | 101.2 | |||||||||
| LXPL-HF -40M | RC2-140B -Z (40PK) | 1 | 35 | 65.1 | 24.4 | 80.2 | 25.4 | 97.6 | 26.3 | 117.8 | 271.0 | 141.0 | 27.8 | 80 | Φ28 | Φ54 | Φ42 | Φ35 | 1730×700×1100 |
| 40 | 60.7 | 26.6 | 74.9 | 27.7 | 91.7 | 28.7 | 110.9 | 29.6 | 133.2 | 30.4 | |||||||||
| 45 | 55.9 | 29.1 | 69.3 | 30.3 | 85.2 | 31.4 | 103.4 | 32.5 | 124.9 | 33.4 | |||||||||
| LXPL-BHF2 -80M | RC2-140B -ZP (40PK) | 2 | 35 | 130.2 | 48.8 | 160.4 | 50.8 | 1952 | 52.6 | 235.6 | 54.2 | 282.0 | 55.6 | 150 | Φ35 | Φ108 | Φ54 | Φ35 | 2300×1700×1800 |
| 40 | 121.4 | 53.2 | 149.8 | 55.4 | 183.4 | 57.4 | 221.8 | 59.2 | 266.4 | 60.8 | |||||||||
| 45 | 111.8 | 58.2 | 138.6 | 60.6 | 170.4 | 62.8 | 206.8 | 65.0 | 249.8 | 66.8 | |||||||||
| LXPL-BHF3 -120M | 3 | 35 | 195.3 | 73.2 | 240.6 | 76.2 | 292.8 | 78.9 | 353.4 | 81.3 | 423.0 | 83.4 | 200 | Φ42 | Φ89×2 | Φ76 | Φ42 | 3000×1700×1800 | |
| 40 | 182.1 | 79.8 | 224.7 | 83.1 | 275.1 | 86.1 | 332.7 | 88.8 | 399.6 | 91.2 | |||||||||
| 45 | 167.7 | 87.3 | 207.9 | 90.9 | 2556 | 94.2 | 310.2 | 97.5 | 374.7 | 100.2 | |||||||||
| LXPL-BHF4 -160M | 4 | 35 | 260.4 | 97.6 | 320.8 | 101.5 | 309.4 | 105.2 | 471.2 | 108.4 | 564.0 | 111.2 | 250 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 3800×1700×1800 | |
| 40 | 242.8 | 106.4 | 299.6 | 110.8 | 366.8 | 114.8 | 443.6 | 118.4 | 532.8 | 121.6 | |||||||||
| 45 | 223.6 | 116.4 | 277.2 | 121.2 | 340.8 | 125.6 | 413.6 | 130.0 | 499.6 | 133.6 | |||||||||
| LXPL-HF -50M | RC2-180B -Z (50 pk) | 1 | 35 | 85.9 | 30.3 | 105.3 | 31.5 | 128.1 | 32.6 | 154.6 | 33.6 | 185.1 | 34.5 | 100 | Φ35 | Φ67 | Φ42 | Φ35 | 2300×900×1100 |
| 40 | 79.8 | 33.1 | 98.4 | 34.4 | 120.4 | 35.7 | 145.6 | 36.8 | 174.8 | 37.8 | |||||||||
| 45 | 73.6 | 36.1 | 91.1 | 37.6 | 112.3 | 39.0 | 136.2 | 40.3 | 163.9 | 41.5 | |||||||||
| LXPL-BHF2 -100M | RC2-180B -ZP (50 pk) | 2 | 35 | 171.8 | 60.6 | 210.6 | 63.0 | 2562 | 652 | 309.2 | 67.2 | 370.2 | 69.0 | 200 | Φ42 | Φ108 | Φ76 | Φ42 | 2300×1700×1800 |
| 40 | 159.6 | 66.2 | 195.8 | 88.8 | 240.8 | 74.1 | 291.2 | 73.6 | 349.6 | 75.6 | |||||||||
| 45 | 147.2 | 72.2 | 182.2 | 75.2 | 224.6 | 78.0 | 272.4 | 80.6 | 327.8 | 83.0 | |||||||||
| LXPL-BHF3 -150M | 3 | 35 | 257.7 | 90.9 | 315.9 | 94.5 | 384.3 | 97.8 | 463.8 | 100.8 | 555.3 | 103.5 | 250 | Φ54 | Φ89×2 | Φ76 | Φ54 | 3500×1700×1800 | |
| 40 | 239.4 | 99.3 | 295.2 | 103.2 | 361.2 | 107.1 | 436.8 | 110.4 | 524.4 | 113.4 | |||||||||
| 45 | 220.8 | 108.3 | 273.3 | 112.8 | 336.9 | 117.0 | 408.6 | 120.9 | 491.7 | 124.5 | |||||||||
| LXPL-BHF4 -200M | 4 | 35 | 343.5 | 121.2 | 421.2 | 126.0 | 512.4 | 130.4 | 618.4 | 134.4 | 740.4 | 138.0 | 300 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 4400×1700×1800 | |
| 40 | 319.2 | 132.4 | 393.8 | 137.6 | 481.6 | 142.8 | 582.4 | 147.2 | 699.2 | 151.2 | |||||||||
| 45 | 294.4 | 144.4 | 364.4 | 150.4 | 449.2 | 156.0 | 544.8 | 161.2 | 655.6 | 166.0 | |||||||||
| Eenheidsmodel | Com.Model | Com. Beleefdheid | Condenserend temperatuur. (℃) | Verdampingstemperaturen (℃) | Reservoir (L) | Levering pijp (mm) | Zuigkracht pijp (mm) | Gas Uitgang pijp (mm) | vloeistof inlaatpijp (mm) | Afmeting (mm) (L×B×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Koelcapaciteit / Pewer-invoer (kw) | |||||||||||||||||||
| LXPL-BHF-55M | RC2-200B -Z (55 pk) | 1 | 35 | 91.9 | 33.6 | 113.1 | 34.9 | 137.6 | 36.1 | 166.1 | 37.3 | 198.9 | 38.2 | 100 | Φ42 | Φ76 | Φ42 | Φ54 | 2300×900×1100 |
| 40 | 85.7 | 36.6 | 105.7 | 38.1 | 129.4 | 39.5 | 156.5 | 40.8 | 187.8 | 41.9 | |||||||||
| 45 | 78.9 | 40.0 | 97.8 | 41.6 | 120.2 | 43.2 | 146.3 | 44.7 | 176.1 | 46.0 | |||||||||
| LXPL-BHF2 -110M | RC2-200B -ZP (55 pk) | 2 | 35 | 183.8 | 67.2 | 226.2 | 69.8 | 275.2 | 72.2 | 332.2 | 74.6 | 397.8 | 76.4 | 200 | Φ57 | Φ108 | Φ76 | Φ76 | 2330×1700×1100 |
| 40 | 171.4 | 73.2 | 211.4 | 73.2 | 258.8 | 79.0 | 313.0 | 81.6 | 375.6 | 83.3 | |||||||||
| 45 | 157.8 | 80.0 | 195.6 | 83.2 | 240.4 | 86.4 | 292.6 | 89.4 | 352.2 | 92.0 | |||||||||
| LXPL-BHF3 -165M | 3 | 35 | 275.7 | 100.8 | 399.3 | 104.7 | 412.8 | 108.3 | 498.3 | 111.9 | 596.7 | 114.6 | 250 | Φ57 | Φ89×2 | Φ89 | Φ76 | 2300×1700×1800 | |
| 40 | 257.1 | 109.8 | 317.1 | 114.3 | 388.2 | 188.5 | 469.5 | 122.4 | 563.4 | 125.7 | |||||||||
| 45 | 236.7 | 120.2 | 293.4 | 124.8 | 360.6 | 129.6 | 438.9 | 134.1 | 528.3 | 138.0 | |||||||||
| LXPL-BHF4 -220M | M | 35 | 367.6 | 134.4 | 452.4 | 139.6 | 550.4 | 144.4 | 664.4 | 149.2 | 795.6 | 152.8 | 300 | Φ57 | Φ108 ×2 | Φ108 | Φ76 | 4400×1700×1800 | |
| 40 | 342.8 | 146.4 | 422.8 | 152.4 | 517.6 | 158.0 | 626.0 | 163.2 | 751.2 | 167.6 | |||||||||
| 45 | 315.6 | 160.0 | 391.2 | 166.4 | 480.8 | 172.8 | 585.2 | 177.8 | 704.4 | 184.0 | |||||||||
| LXPL-HF -60M | RC2-230B -Z (60 pk) | 1 | 35 | 114.1 | 33.6 | 140.5 | 44.2 | 170.9 | 45.8 | 206.3 | 47.3 | 247.1 | 48.4 | 150 | Φ35 | Φ76 | Φ54 | Φ35 | 2300×900×1250 |
| 40 | 106.3 | 46.4 | 131.2 | 48.3 | 160.7 | 50.0 | 194.4 | 51.7 | 233.3 | 53.1 | |||||||||
| 45 | 97.9 | 50.7 | 121.4 | 52.8 | 149.3 | 54.7 | 181.7 | 56.6 | 218.8 | 58.2 | |||||||||
| LXPL-BHF2 -120M | RC2-230B -ZP (60 pk) | 2 | 35 | 228.2 | 85.0 | 281.0 | 88.4 | 341.8 | 91.6 | 412.6 | 94.4 | 494.2 | 96.8 | 200 | Φ42 | Φ133 | Φ76 | Φ42 | 2600×1700×1900 |
| 40 | 212.6 | 92.8 | 262.4 | 96.6 | 321.4 | 100.0 | 388.8 | 103.4 | 466.6 | 106.2 | |||||||||
| 45 | 195.8 | 101.4 | 242.8 | 105.6 | 298.6 | 109.4 | 363.4 | 113.2 | 437.6 | 116.4 | |||||||||
| LXPL-BHF3 -180M | 3 | 35 | 342.3 | 127.5 | 421.5 | 132.6 | 512.7 | 134.7 | 618.9 | 141.6 | 741.3 | 145.2 | 300 | Φ54 | Φ108 ×2 | Φ76 | Φ67 | 3500×1700×1900 | |
| 40 | 318.9 | 139.2 | 393.6 | 144.9 | 482.1 | 150.0 | 583.2 | 155.1 | 699.9 | 159.3 | |||||||||
| 45 | 293.7 | 152.1 | 364.2 | 158.4 | 447.9 | 164.1 | 545.1 | 169.8 | 656.4 | 174.6 | |||||||||
| LXPL-BHF4 -240M | 4 | 35 | 456.4 | 170.0 | 562.0 | 176.8 | 683.6 | 183.2 | 825.2 | 188.8 | 988.4 | 193.6 | 400 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1700×1900 | |
| 40 | 425.2 | 185.6 | 524.8 | 193.2 | 642.8 | 200.0 | 777.6 | 206.8 | 933.2 | 212.4 | |||||||||
| 45 | 391.6 | 202.8 | 485.6 | 211.2 | 597.2 | 218.8 | 726.8 | 266.4 | 875.2 | 232.8 | |||||||||
| LXPL-HF -70M | RC2-260B -Z (70PK) | 1 | 35 | 123.4 | 43.8 | 151.3 | 45.6 | 184.1 | 47.2 | 222.2 | 448.7 | 266.1 | 49.9 | 150 | Φ35 | Φ76 | Φ54 | Φ35 | 2300×900×1250 |
| 40 | 114.7 | 47.9 | 141.5 | 49.8 | 173.1 | 51.6 | 209.3 | 53.3 | 251.3 | 54.7 | |||||||||
| 45 | 105.7 | 52.3 | 130.9 | 54.4 | 161.4 | 56.4 | 195.7 | 58.3 | 235.6 | 60.0 | |||||||||
| LXPL-BHF2 -140M | RC2-260B -ZP (70PK) | 2 | 35 | 246.8 | 87.6 | 302.6 | 91.2 | 368.2 | 94.4 | 444.4 | 97.4 | 532.2 | 99.8 | 200 | Φ54 | Φ133 | Φ76 | Φ54 | 2600×1700×1900 |
| 40 | 229.4 | 95.8 | 283.0 | 99.6 | 346.2 | 103.2 | 418.6 | 106.6 | 502.6 | 109.4 | |||||||||
| 45 | 211.4 | 104.6 | 261.8 | 108.8 | 322.8 | 112.8 | 391.4 | 116.6 | 471.2 | 120.0 | |||||||||
| LXPL-BHF3 -210M | 3 | 35 | 370.2 | 131.4 | 453.9 | 136.8 | 552.3 | 141.6 | 666.6 | 146.1 | 798.3 | 149.7 | 300 | Φ54 | Φ108 ×2 | Φ108 | Φ67 | 3500×1700×1900 | |
| 40 | 344.1 | 143.7 | 424.5 | 149.4 | 591.3 | 154.8 | 627.9 | 159.9 | 753.9 | 164.1 | |||||||||
| 45 | 317.1 | 156.9 | 392.7 | 163.2 | 484.2 | 169.2 | 587.1 | 174.9 | 706.8 | 180.0 | |||||||||
| LXPL-BHF4 -280M | 4 | 35 | 493.6 | 175.2 | 605.2 | 182.4 | 736.4 | 188.8 | 888.8 | 194.8 | 1064.4 | 199.6 | 400 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1700×1900 | |
| 40 | 458.8 | 191.6 | 566.0 | 199.2 | 692.4 | 206.4 | 837.2 | 213.2 | 1005.2 | 218.8 | |||||||||
| 45 | 422.8 | 209.2 | 523.6 | 217.6 | 645.6 | 225.6 | 782.8 | 233.2 | 942.4 | 240.0 | |||||||||
| Eenheidsmodel | Kam.Model | Kom, Kwaliteit | Condenserend temperaturen. (℃) | Verdampingstemperatuur. (℃) | Reservoir (L) | Levering pijp (mm) | Zuigkracht pijp (mm) | Gas Uitgang pijp (mm) | vloeistof inlaatpijp (mm) | Afmeting (mm) (L×B×H) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Koelcapaciteit/vermogen (kw) | ||||||||||||||||||||
| LXPL-BHF-75M | RC2-300B -Z (75 pk) | 1 | 35 | 145.4 | 50.5 | 178.3 | 52.5 | 216.9 | 54.4 | 261.8 | 56.1 | 313.6 | 57.5 | 200 | Φ57 | Φ89 | Φ67 | Φ67 | 2300×900×1250 | |
| 40 | 135.3 | 55.2 | 167.3 | 57.4 | 203.9 | 59.5 | 246.6 | 61.4 | 296.1 | 63.1 | ||||||||||
| 45 | 127.4 | 60.3 | 154.4 | 62.7 | 190.1 | 65.1 | 230.6 | 67.3 | 277.6 | 69.2 | ||||||||||
| LXPL-BHF2 -150M | RC2-300B -ZP (75 pk) | 2 | 35 | 290.8 | 101.0 | 356.6 | 105.0 | 433.8 | 108.8 | 523.6 | 112.2 | 627.2 | 115.0 | 250 | Φ57 | Φ133 | Φ89 | Φ76 | 2600×1700×1900 | |
| 40 | 270.6 | 101.0 | 334.6 | 114.8 | 407.8 | 119.0 | 493.2 | 122.8 | 5922 | 126.2 | ||||||||||
| 45 | 249.4 | 120.6 | 308.8 | 125.4 | 380.2 | 130.2 | 461.2 | 134.6 | 555.2 | 138.4 | ||||||||||
| LXPL-BHF3 -225M | 3 | 35 | 436.2 | 151.5 | 534.9 | 157.5 | 650.7 | 163.2 | 785.4 | 168.3 | 940.8 | 172.5 | 400 | Φ57 | Φ108 ×2 | Φ108 | Φ89 | 3500×1700×1900 | ||
| 40 | 405.9 | 165.6 | 501.9 | 172.2 | 611.7 | 178.5 | 739.8 | 184.2 | 888.3 | 189.3 | ||||||||||
| 45 | 374.1 | 180.9 | 463.2 | 188.1 | 570.3 | 195.3 | 691.8 | 201.9 | 832.8 | 207.6 | ||||||||||
| LXPL-BHF4 -300M | 4 | 35 | 581.6 | 202.0 | 731.2 | 210.0 | 867.6 | 217.6 | 1047.2 | 224.4 | 1254.4 | 230.0 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1700×1900 | ||
| 40 | 541.2 | 220.8 | 699.2 | 229.6 | 815.6 | 238.0 | 986.4 | 245.6 | 1184.4 | 252.4 | ||||||||||
| 45 | 498.8 | 241.2 | 617.6 | 250.8 | 760.4 | 260.4 | 922.4 | 269.2 | 1110.4 | 276.8 | ||||||||||
| LXPL-HF -80M | RC2-310B -Z (80 pk) | 1 | 35 | 153.7 | 53.8 | 188.4 | 55.9 | 229.2 | 57.9 | 276.6 | 59.7 | 331.6 | 61.2 | 200 | Φ35 | Φ76 | Φ54 | Φ35 | 2600×900×1400 | |
| 40 | 142.9 | 58.7 | 176.8 | 61.1 | 215.5 | 63.3 | 260.6 | 65.3 | 312.8 | 67.1 | ||||||||||
| 45 | 131.7 | 64.1 | 163.1 | 66.7 | 200.9 | 69.2 | 243.7 | 71.6 | 293.3 | 73.6 | ||||||||||
| LXPL-BHF2 -160M | RC2-310B -ZP (80 pk) | 2 | 35 | 307.4 | 107.8 | 376.8 | 111.8 | 458.4 | 115.8 | 553.2 | 119.4 | 662.6 | 122.4 | 250 | Φ57 | Φ133 | Φ76 | Φ54 | 3000×1800×2100 | |
| 40 | 285.8 | 117.4 | 353.6 | 122.2 | 431.0 | 126.6 | 521.2 | 130.6 | 625.6 | 134.2 | ||||||||||
| 45 | 263.4 | 128.2 | 326.2 | 133.4 | 401.8 | 138.4 | 487.4 | 143.2 | 586.6 | 147.2 | ||||||||||
| LXPL-BHF3 -240M | 3 | 35 | 461.1 | 161.4 | 565.2 | 167.7 | 687.6 | 173.7 | 829.8 | 179.1 | 993.9 | 183.6 | 400 | Φ54 | Φ108 ×2 | Φ108 | Φ67 | 3500×1700×1900 | ||
| 40 | 428.7 | 176.1 | 530.4 | 183.3 | 646.5 | 189.9 | 781.8 | 195.9 | 938.4 | 201.3 | ||||||||||
| 45 | 395.1 | 192.3 | 489.3 | 200.1 | 602.7 | 207.6 | 731.1 | 214.8 | 879.9 | 220.8 | ||||||||||
| LXPL-BHF4 -320M | 4 | 35 | 614.8 | 215.2 | 753.6 | 223.6 | 916.8 | 231.6 | 1106.4 | 238.8 | 1325.2 | 244.8 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4000×1700×1900 | ||
| 40 | 571.6 | 234.8 | 707.2 | 244.4 | 862.0 | 253.2 | 1042.4 | 261.2 | 1251.2 | 268.4 | ||||||||||
| 45 | 526.8 | 256.4 | 376.8 | 266.8 | 803.6 | 276.8 | 974.8 | 286.4 | 1173.2 | 299.4 | ||||||||||
| LXPL-HF -90M | RC2-340B -Z (90PK) | 1 | 35 | 171.1 | 58.0 | 209.8 | 60.3 | 255.2 | 62.5 | 308.0 | 64.4 | 368.9 | 66.1 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 2600×850×1400 | |
| 40 | 159.3 | 63.4 | 196.8 | 65.9 | 239.9 | 68.3 | 290.1 | 70.5 | 348.3 | 72.4 | ||||||||||
| 45 | 146.9 | 69.2 | 181.8 | 72.0 | 223.7 | 74.7 | 271.3 | 77.2 | 326.6 | 79.5 | ||||||||||
| LXPL-BHF2 -180M | RC2-340B -ZP (90PK) | 2 | 35 | 342.2 | 116.0 | 419.6 | 120.6 | 510.4 | 125.0 | 616.0 | 128.8 | 737.8 | 132.2 | 300 | Φ54 | Φ133 | Φ76 | Φ54 | 3000×1800×2100 | |
| 40 | 318.9 | 126.8 | 393.6 | 131.8 | 479.8 | 136.6 | 580.2 | 141.0 | 696.6 | 144.8 | ||||||||||
| 45 | 293.8 | 138.4 | 363.8 | 144.0 | 447.4 | 149.4 | 542.6 | 154.4 | 653.2 | 159.0 | ||||||||||
| LXPL-BHF3 -270M | 3 | 35 | 513.3 | 174.0 | 629.4 | 180.9 | 765.6 | 187.5 | 924.0 | 193.2 | 1106.7 | 198.3 | 400 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 3800×1800×2100 | ||
| 40 | 477.9 | 190.2 | 590.4 | 197.7 | 719.7 | 204.9 | 870.3 | 211.5 | 1044.9 | 217.2 | ||||||||||
| 45 | 440.7 | 207.6 | 545.4 | 216.0 | 671.1 | 224.1 | 813.9 | 231.6 | 979.8 | 238.5 | ||||||||||
| LXPL-BHF4 -360M | 4 | 35 | 684.4 | 232.0 | 839.2 | 241.2 | 1020.8 | 250.0 | 1232.0 | 2576 | 1475.6 | 264.4 | 600 | Φ57 | Φ159 ×2 | Φ133 | Φ89 | 4600×1800×2100 | ||
| 40 | 637.2 | 253.6 | 787.2 | 263.6 | 959.6 | 273.2 | 1160.4 | 282.0 | 1393.2 | 289.6 | ||||||||||
| 45 | 587.6 | 276.8 | 727.2 | 288.0 | 894.8 | 298.8 | 1085.2 | 308.8 | 1306.4 | 318.0 | ||||||||||
| Eenheidsmodel | Com.Model | Kom, Beleefdheid | Condenserend temperatuur. (℃) | Verdampingstemperatuur. (℃) | Reservoir (L) | Levering pijp (mm) | Zuigkracht pijp (mm) | Gas Uitgang pijp (mm) | vloeistof inlaatpijp (mm) | Afmeting (mm) (LxB×H) | ||||||||||
| -15 | -10 | -5 | 0 | 5 | ||||||||||||||||
| Verzamelcapaciteit/vermogen (kw) | ||||||||||||||||||||
| LXPL-BHF -100M | RC2-370B -Z (100 pk) | 1 | 35 | 184.3 | 62.7 | 226.0 | 65.2 | 274.8 | 67.5 | 331.7 | 69.6 | 397.3 | 71.3 | 100 | Φ42 | Φ108 | Φ67 | Φ57 | 2600×850×1400 | |
| 40 | 171.5 | 68.4 | 212.0 | 71.5 | 285.4 | 73.8 | 312.5 | 76.2 | 375.1 | 78.3 | ||||||||||
| 45 | 158.1 | 74.8 | 195.8 | 77.8 | 240.9 | 80.7 | 292.2 | 83.4 | 351.7 | 85.8 | ||||||||||
| LXPL-BHF2 -200M | RC2-370B -ZP (100 pk) | 2 | 35 | 368.6 | 125.4 | 452.0 | 130.4 | 549.6 | 135.0 | 663.4 | 139.2 | 794.6 | 142.8 | 300 | Φ54 | Φ159 | Φ108 | Φ67 | 3500×1900×2100 | |
| 40 | 343.0 | 136.8 | 424.0 | 142.4 | 516.8 | 147.6 | 625.0 | 152.4 | 750.2 | 156.4 | ||||||||||
| 45 | 316.2 | 149.6 | 391.6 | 155.6 | 481.8 | 161.4 | 584.4 | 166.8 | 703.4 | 171.8 | ||||||||||
| LXPL-BHF3 -300M | 3 | 35 | 552.9 | 188.1 | 678.0 | 195.6 | 824.4 | 202.5 | 995.1 | 208.8 | 1191.9 | 214.2 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1900×2100 | ||
| 40 | 514.5 | 205.2 | 636.0 | 213.6 | 775.2 | 221.4 | 937.5 | 228.6 | 1125.3 | 234.6 | ||||||||||
| 45 | 474.3 | 224.4 | 587.4 | 233.4 | 722.7 | 242.1 | 876.6 | 205.2 | 1055.1 | 257.7 | ||||||||||
| LXPL-BHF4 -400M | 4 | 35 | 737.2 | 250.8 | 904.0 | 260.8 | 1099.2 | 270.0 | 1326.8 | 278.4 | 1589.2 | 285.6 | 600 | Φ57 | Φ159 ×2 | Φ133 | Φ89 | 5300×1900×2100 | ||
| 40 | 686.0 | 273.6 | 848.0 | 284.8 | 1033.6 | 295.2 | 1250.0 | 304.8 | 1500.4 | 312.8 | ||||||||||
| 45 | 632.4 | 299.2 | 783.2 | 313.2 | 963.6 | 322.8 | 1168.8 | 333.6 | 1406.8 | 343.6 | ||||||||||
| LXPL-HF -110M | RC2-410B -Z (110 pk) | 1 | 35 | 200.4 | 69.3 | 245.9 | 72.1 | 298.8 | 67.5 | 360.6 | 77.0 | 432.0 | 78.9 | 250 | Φ42 | Φ108 | Φ67 | Φ54 | 2750×850×1450 | |
| 40 | 186.4 | 75.7 | 230.5 | 78.7 | 280.9 | 81.6 | 339.8 | 84.3 | 407.9 | 86.5 | ||||||||||
| 45 | 171.8 | 82.7 | 212.8 | 86.0 | 261.9 | 89.3 | 317.7 | 92.3 | 352.8 | 95.0 | ||||||||||
| LXPL-BHF2 -220M | RC2-410B -ZP (110 pk) | 2 | 35 | 400.8 | 138.6 | 491.4 | 144.2 | 597.6 | 135.0 | 721.2 | 154.0 | 864.0 | 157.8 | 300 | Φ57 | Φ159 | Φ108 | Φ76 | 3500×1900×2150 | |
| 40 | 372.8 | 151.4 | 461.0 | 157.4 | 561.8 | 163.2 | 679.6 | 168.6 | 815.8 | 137.0 | ||||||||||
| 45 | 343.6 | 165.4 | 425.6 | 172.0 | 523.8 | 178.6 | 635.4 | 184.6 | 764.8 | 190.0 | ||||||||||
| LXPL-BHF3 -330M | 3 | 35 | 601.2 | 207.9 | 737.1 | 216.3 | 896.4 | 202.5 | 1081.8 | 231.0 | 1296.0 | 236.7 | 500 | Φ57 | Φ133 ×2 | Φ108 | Φ89 | 4400×1000×2150 | ||
| 40 | 559.2 | 227.1 | 691.5 | 236.1 | 842.7 | 244.8 | 1019.4 | 252.9 | 1223.7 | 259.5 | ||||||||||
| 45 | 515.4 | 248.1 | 638.4 | 258.0 | 785.7 | 267.9 | 953.1 | 276.9 | 1147.2 | 285.0 | ||||||||||
| LXPL-BHF4 -440M | 4 | 35 | 801.6 | 277.2 | 982.8 | 288.4 | 1195.2 | 270.0 | 1442.4 | 308.0 | 1728.0 | 315.6 | 600 | Φ57 | Φ159 ×2 | Φ133 | Φ89 | 5300×1900×2150 | ||
| 40 | 745.6 | 302.8 | 922.0 | 314.8 | 1123.6 | 326.4 | 1359.2 | 337.2 | 1631.6 | 346.0 | ||||||||||
| 45 | 687.2 | 330.8 | 851.2 | 344.0 | 1047.6 | 357.2 | 1270.8 | 369.2 | 1529.6 | 380.0 | ||||||||||
| LXPL-HF -125M | RC2-470B -Z (125 pk) | 1 | 35 | 238.6 | 80.1 | 292.5 | 83.3 | 355.8 | 86.3 | 429.4 | 88.9 | 514.3 | 91.2 | 250 | Φ42 | Φ108 | Φ67 | Φ54 | 2750×870×1450 | |
| 40 | 222.2 | 87.5 | 274.4 | 91.0 | 334.5 | 94.3 | 404.5 | 97.3 | 485.6 | 100.0 | ||||||||||
| 45 | 204.8 | 95.5 | 253.6 | 994 | 311.9 | 103.1 | 378.3 | 106.6 | 455.3 | 109.7 | ||||||||||
| LXPL-BHF2 -250M | RC2-470B -ZP (125 pk) | 2 | 35 | 477.2 | 160.2 | 585.0 | 166.6 | 711.6 | 172.6 | 858.8 | 177.8 | 1028.6 | 182.4 | 400 | Φ57 | Φ159 | Φ108 | Φ67 | 3500×1900×2550 | |
| 40 | 444.4 | 1750 | 548.8 | 182.0 | 699.0 | 188.6 | 809.0 | 194.5 | 971.2 | 200.0 | ||||||||||
| 45 | 409.8 | 191.0 | 507.2 | 198.8 | 623.8 | 206.2 | 756.6 | 213.2 | 910.6 | 219.4 | ||||||||||
| LXPL-BHF3 -375M | 3 | 35 | 715.8 | 240.3 | 877.5 | 249.9 | 1067.4 | 258.9 | 1288.2 | 266.7 | 1542.9 | 273.6 | 600 | Φ57 | Φ133 ×2 | Φ133 | Φ89 | 4500×1900×2500 | ||
| 40 | 666.6 | 262.5 | 838.2 | 273.0 | 1003.5 | 282.9 | 1213.5 | 291.9 | 1456.8 | 300.0 | ||||||||||
| 45 | 614.4 | 286.5 | 760.8 | 298.2 | 935.7 | 309.3 | 1134.9 | 319.8 | 1365.9 | 329.1 | ||||||||||
| LXPL-BHF4 -500M | 4 | 35 | 954.4 | 320.4 | 1170.0 | 333.2 | 1423.2 | 3452 | 1717.6 | 355.6 | 2057.2 | 364.8 | 800 | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5400×1900×2500 | ||
| 40 | 888.8 | 350.01 | 1097.6 | 364.0 | 1338.0 | 377.2 | 1618.0 | 389.2 | 1942.4 | 438.8 | ||||||||||
| 45 | 819.2 | 382.0 | 1014.4 | 397.6 | 1247.6 | 412.4 | 1513.2 | 426.4 | 1821.2 | 438.8 | ||||||||||
| Eenheidsmodel | Com.Model | Cam. Kwaliteit | Condenserend temperatuur. (℃) | Verdampingstemperatuur. (℃) | Reservoir (L) | Levering pijp (mm) | Zuigkracht pijp (mm) | Gas Uitgang pijp (mm) | vloeistof inlaatpijp (mm) | Afmeting (mm) (L×B×H) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| KoelcapaciteitVermogensinput (kw) | |||||||||||||||||||
| LXPL-BHF -130M | RC2-510B -Z (130PK) | 1 | 35 | 254.3 | 85.9 | 311.9 | 89.3 | 379.3 | 92.5 | 457.8 | 95.4 | 548.3 | 97.8 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 3050×870×1450 |
| 40 | 236.8 | 93.8 | 292.6 | 97.5 | 356.6 | 101.1 | 431.3 | 104.4 | 517.7 | 107.2 | |||||||||
| 45 | 218.3 | 102.4 | 270.3 | 106.6 | 332.5 | 110.6 | 403.3 | 114.3 | 485.5 | 117.6 | |||||||||
| LXPL-BHF2 -260M | RC2-510B -ZP (130PK) | 2 | 35 | 508.6 | 171.8 | 623.8 | 178.6 | 758.6 | 185.0 | 915.6 | 190.8 | 1096.6 | 195.6 | 400 | Φ57 | Φ159 | Φ133 | Φ89 | 3250×2100×1750 |
| 40 | 473.6 | 187.6 | 585.2 | 195.0 | 713.2 | 202.2 | 862.6 | 208.8 | 1035.4 | 214.4 | |||||||||
| 45 | 436.6 | 204.8 | 540.6 | 213.2 | 665.0 | 221.2 | 806.6 | 228.6 | 971.0 | 235.2 | |||||||||
| LXPL-BHF3 -390M | 3 | 35 | 762.9 | 257.7 | 935.7 | 267.9 | 1137.9 | 277.5 | 1373.4 | 286.2 | 1644.9 | 293.4 | 600 | Φ76 | Φ133 ×2 | Φ159 | Φ89 | 4350×2100×1800 | |
| 40 | 710.4 | 281.4 | 877.8 | 292.5 | 1069.8 | 303.3 | 1293.9 | 313.2 | 1553.1 | 321.6 | |||||||||
| 45 | 654.9 | 307.2 | 810.9 | 319.8 | 997.5 | 331.8 | 1209.9 | 342.9 | 1456.5 | 352.8 | |||||||||
| LXPL-BHF4 -520M | 4 | 35 | 1017.2 | 343.6 | 1247.6 | 357.2 | 1517.2 | 370.0 | 1831.2 | 381.6 | 2193.2 | 391.2 | 800 (Buiten) | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5400×2100×2050 | |
| 40 | 947.2 | 375.2 | 1170.4 | 390.0 | 1426.4 | 404.4 | 1725.2 | 417.66 | 2070.8 | 428.8 | |||||||||
| 45 | 873.2 | 409.6 | 1081.2 | 426.4 | 1330.0 | 442.4 | 1613.2 | 457.2 | 1942.0 | 470.4 | |||||||||
| LXPL-HF -140M | RC2-550B -Z (140PK) | 1 | 35 | 271.3 | 94.4 | 322.6 | 98.2 | 404.6 | 101.7 | 488.3 | 104.9 | 584.8 | 107.5 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 3050×870×1450 |
| 40 | 252.3 | 103.1 | 312.1 | 107.3 | 380.3 | 111.2 | 460.0 | 114.8 | 552.2 | 117.9 | |||||||||
| 45 | 232.5 | 112.7 | 288.0 | 117.2 | 354.6 | 121.6 | 430.1 | 125.7 | 517.8 | 129.4 | |||||||||
| LXPL-BHF2 -280M | RC2-550B -ZP (140PK) | 2 | 35 | 542.6 | 188.8 | 665.2 | 196.4 | 809.2 | 203.4 | 976.6 | 209.8 | 1169.6 | 215.0 | 400 | Φ57 | Φ159 | Φ133 | Φ89 | 3400×2150×1750 |
| 40 | 504.6 | 206.2 | 624.2 | 214.6 | 760.6 | 222.4 | 920.0 | 229.6 | 1104.4 | 235.8 | |||||||||
| 45 | 465.0 | 225.4 | 576.0 | 234.4 | 709.2 | 243.2 | 860.2 | 251.4 | 1035.6 | 258.8 | |||||||||
| LXPL-BHF3 -420M | 3 | 35 | 813.9 | 2832 | 997.8 | 294.6 | 1213.8 | 305.1 | 1464.9 | 314.7 | 1754.4 | 322.5 | 600 | Φ76 | Φ133 ×2 | Φ159 | Φ89 | 4550×2150×2050 | |
| 40 | 765.9 | 309.3 | 936.3 | 321.9 | 1140.9 | 333.6 | 1380.0 | 344.4 | 1656.6 | 353.7 | |||||||||
| 45 | 697.5 | 338.1 | 864.0 | 351.6 | 1063.8 | 364.8 | 1290.3 | 377.1 | 1553.4 | 388.2 | |||||||||
| LXPL-BHF4 -560M | 4 | 35 | 1085.2 | 377.6 | 1330.4 | 392.8 | 1618.4 | 406.8 | 1953.2 | 419.6 | 2339.2 | 430.0 | 800 (Buiten) | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5600×2150×2050 | |
| 40 | 1009.2 | 412.4 | 1248.4 | 4292 | 1521.2 | 444.8 | 1840.0 | 459.2 | 2208.8 | 471.6 | |||||||||
| 45 | 930.0 | 450.8 | 1152.0 | 466.8 | 1418.4 | 486.4 | 1720.4 | 502.8 | 2071.2 | 517.6 | |||||||||
| LXPL-HF -150M | RC2-580B -Z (150PK | 1 | 35 | 299.9 | 101.6 | 367.7 | 105.7 | 447.2 | 109.5 | 539.8 | 112.9 | 646.5 | 115.8 | 200 | Φ42 | Φ108 | Φ67 | Φ54 | 3050×870×1450 |
| 40 | 279.2 | 111.0 | 345.0 | 115.5 | 420.4 | 119.7 | 508.5 | 123.6 | 610.4 | 126.9 | |||||||||
| 45 | 257.4 | 121.3 | 318.6 | 126.2 | 392.0 | 130.9 | 475.5 | 135.3 | 572.4 | 139.3 | |||||||||
| LXPL-BHF2 -300M | RC2-580B -ZP (150PK) | 2 | 35 | 599.8 | 203.2 | 735.4 | 211.4 | 894.4 | 219.0 | 1079.6 | 225.8 | 1293.0 | 231.6 | 500 | Φ57 | Φ159 | Φ133 | Φ89 | 3500×2150×1750 |
| 40 | 558.4 | 222.0 | 690.0 | 231.0 | 840.8 | 239.4 | 1017.0 | 247.2 | 1220.8 | 253.8 | |||||||||
| 45 | 514.8 | 242.6 | 637.2 | 252.4 | 784.0 | 261.8 | 951.0 | 270.5 | 1144.8 | 278.5 | |||||||||
| LXPL-BHF3 -450M | 3 | 35 | 899.7 | 304.8 | 1103.1 | 317.1 | 1341.6 | 328.5 | 1619.4 | 338.7 | 1939.5 | 347.4 | 800 (Buiten) | Φ76 | Φ133 ×2 | Φ133 | Φ108 | 4650×2150×2050 | |
| 40 | 837.6 | 333.0 | 1035.0 | 346.51 | 1261.2 | 359.1 | 1525.5 | 370.8 | 1831.2 | 380.7 | |||||||||
| 45 | 772.2 | 363.9 | 955.8 | 378.6 | 1176.0 | 392.7 | 1426.5 | 405.9 | 1717.2 | 417.9 | |||||||||
| LXPL-BHF4 -600M | 4 | 35 | 1199.6 | 406.4 | 1470.8 | 422.8 | 1788.8 | 438.0 | 2159.2 | 451.6 | 2586.0 | 463.2 | 800 (Buiten) | Φ76 | Φ159 ×2 | Φ159 | Φ108 | 5800×2150×2350 | |
| 40 | 1116.8 | 444.0 | 1380.0 | 462.0 | 1681.6 | 478.8 | 2034.0 | 494.4 | 2441.6 | 507.6 | |||||||||
| 45 | 1029.6 | 485.2 | 1274.4 | 504.8 | 1568.0 | 5236 | 1902.0 | 541.2 | 2289.6 | 557.2 | |||||||||
Detailweergave
Neem contact op
OVER ONS
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Als China Hanbell eenheid voor gemiddelde tot hoge temperaturen Leveranciers en Hanbell eenheid voor gemiddelde tot hoge temperaturen Fabriek,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. is gespecialiseerd in efficiënte, groene en duurzame koeloplossingen. Met hoogwaardige producten en innovatieve technologieën bedienen we de sectoren voedsel, farmacie, chemie en koelketenlogistiek, en creëren we energiezuinige en milieuvriendelijke systemen voor onze klanten, wat bijdraagt aan wederzijds voordelige ontwikkeling voor zowel de industrie als het milieu.
Ere certificaat
Nieuws
-
Loop een koelcel binnen en voel de lucht bij de deur. Als de ene hoek warmer is dan de andere, of als de temperatuur elke middag stijgt, is de industriële luchtkoeler die in de kamer is gemonteerd meestal de eerste plek om te kijken. ...
LEES MEER -
Wanneer een voedselverwerkingsfabriek in een regio met waterschaarste de koelopties evalueert, bepaalt de condensorkeuze vaak of het project wordt goedgekeurd. Luchtgekoelde condensors elimineren de toevoeging van koelwater volledig, ...
LEES MEER -
Tijdens het zoeken naar een fabrikant van verdampers en condensors , Lanxi Refrigeration is zeker uw aandacht waard. Met onderscheidende voordelen op het gebied van condensorontwerp en productie levert Lanxi Refrigeration condenso...
LEES MEER
NEEM CONTACT OP
PRODUCTEN
CONTACTGEGEVENS
- E-mail: [email protected]
- Telefoon: +86-15258555916
- Adres: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, provincie Zhejiang.China
Auteursrecht © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Alle rechten voorbehouden.
浙ICP备2022034605号-1
Groothandel Hanbell eenheid voor gemiddelde tot hoge temperaturen Fabriek
